Apple iPhone 16 Pro Max: In-Depth Specifications
Get a comprehensive look at the cutting-edge features of the Apple iPhone 16 Pro Max.
LISTEN TO IPHONE 16 PRO MAX AUDIO OVERVIEW HERE:

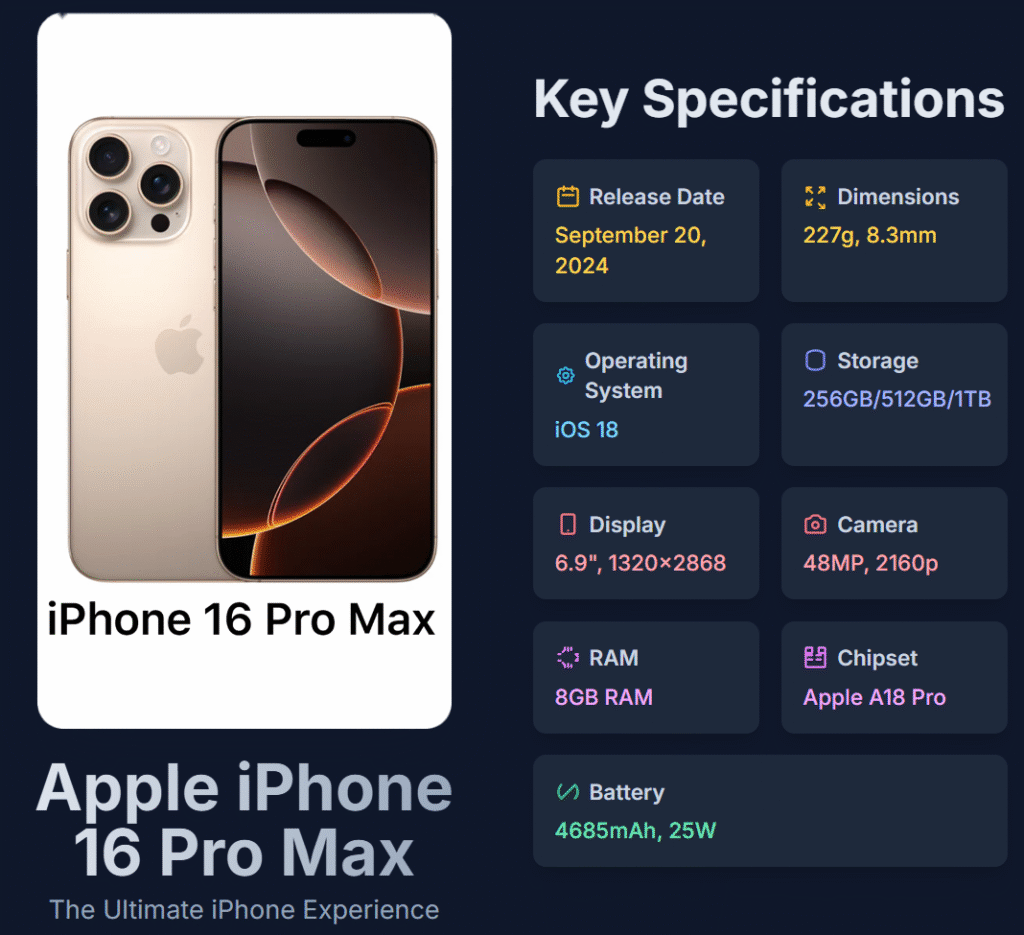

Apple iPhone 16 Pro Max
An Interactive Technical Overview
At a Glance
Here are the standout features of the iPhone 16 Pro Max. This summary provides a quick look at the core components that define the device’s experience.
📱
6.9″
LTPO Super Retina
📸
48MP
Triple Camera
⚙️
A18 Pro
6-core GPU
🔋
4685mAh
Li-Ion Battery
Performance
- OS
- iOS 18, upgradable to iOS 18.5
- Chipset
- Apple A18 Pro (3 nm)
- CPU
- Hexa-core (2×4.05 GHz + 4×2.42 GHz)
- GPU
- Apple GPU (6-core graphics)
- Internal Memory
- 256GB/512GB/1TB, 8GB RAM (NVMe)
Body & Display
- Dimensions
- 163 x 77.6 x 8.3 mm
- Weight
- 227 g
- Build
- Glass front, glass back, titanium frame (grade 5)
- Display Type
- LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision
- Display Size
- 6.9 inches (~91.4% screen-to-body ratio)
- Resolution
- 1320 x 2868 pixels (~460 ppi)
- Protection
- Ceramic Shield glass (2024 gen), IP68 dust/water resistant
Cameras
Main Camera (Triple)
- Primary
- 48 MP, f/1.8, 24mm (wide), sensor-shift OIS
- Periscope Telephoto
- 12 MP, f/2.8, 120mm, 5x optical zoom
- Ultrawide
- 48 MP, 1/2.2, 13mm (ultrawide)
- Features
- Dual-LED flash, HDR, TOF 3D LiDAR scanner
- Video
- 4K@120fps, 10-bit HDR, Dolby Vision, ProRes, 3D Spatial Video
Selfie Camera (Single)
- Camera
- 12 MP, f/1.9, 23mm (wide), PDAF, OIS, SL 3D sensor
- Features
- HDR, Dolby Vision HDR, 3D (spatial) audio
- Video
- 4K & 1080p support, gyro-EIS
Connectivity & More
- WLAN
- Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band
- Bluetooth
- 5.3, A2DP, LE
- Positioning
- GPS, GLONASS, GALILEO, BDS, QZSS, NavIC
- USB
- USB Type-C 3.2 Gen 2, DisplayPort
- Sensors
- Face ID, accelerometer, gyro, proximity, compass, barometer
- Battery Type
- Li-Ion 4685 mAh
- Charging
- Wired PD2.0 (50% in 30 min), 25W MagSafe, 15W Qi2, 4.5W reverse wired
Complete Specifications Table
For a comprehensive overview, here is the full specification table with all available details.
| Feature | Detail |
|---|---|
| Network | |
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| Launch | |
| Announced | 2024, September 09 |
| Status | Available. Released 2024, September 20 |
| Body | |
| Dimensions | 163 x 77.6 x 8.3 mm (6.42 x 3.06 x 0.33 in) |
| Weight | 227 g (8.01 oz) |
| Build | Glass front, glass back, titanium frame (grade 5) |
| SIM | Nano-SIM + SIM + eSIM (International) eSIM + eSIM (USA) Nano-SIM + Nano-SIM (China) |
| Protection | IP68 dust/water resistant (up to 6m for 30 min) Apple Pay (Visa, MasterCard, AMEX certified) |
| Display | |
| Type | LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 2000 nits (HBM) |
| Size | 6.9 inches, 115.6 cm² (~91.4% screen-to-body ratio) |
| Resolution | 1320 x 2868 pixels, 19.5:9 ratio (~460 ppi density) |
| Protection | Ceramic Shield glass (2024 gen) |
| Platform | |
| OS | iOS 18, upgradable to iOS 18.5 |
| Chipset | Apple A18 Pro (3 nm) |
| CPU | Hexa-core (2×4.05 GHz + 4×2.42 GHz) |
| GPU | Apple GPU (6-core graphics) |
| Memory | |
| Card slot | No |
| Internal | 256GB/512GB/1TB, 8GB RAM (NVMe) |
| Main Camera | |
| Triple | 48 MP (wide) + 12 MP (periscope telephoto) + 48 MP (ultrawide) |
| Features | Dual-LED dual-tone flash, HDR, TOF 3D LiDAR scanner (depth) |
| Video | 4K@24/25/30/60/100/120fps, 10-bit HDR, Dolby Vision, ProRes, 3D (spatial) video |
| Selfie Camera | |
| Single | 12 MP, f/1.9, 23mm (wide), PDAF, OIS SL 3D, (depth/biometrics sensor) |
| Features | HDR, Dolby Vision HDR, 3D (spatial) audio |
| Video | 4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS |
| Sound | |
| Loudspeaker | Yes, with stereo speakers |
| 3.5mm jack | No |
| Comms | |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, hotspot |
| Bluetooth | 5.3, A2DP, LE |
| Positioning | GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS, NavIC |
| NFC | Yes |
| Radio | No |
| USB | USB Type-C 3.2 Gen 2, DisplayPort |
| Features | |
| Sensors | Face ID, accelerometer, gyro, proximity, compass, barometer |
| Other | Ultra Wideband (UWB) support (gen2 chip) Emergency SOS via satellite |
| Battery | |
| Type | Li-Ion 4685 mAh |
| Charging | Wired, PD2.0, 50% in 30 min 25W wireless (MagSafe), 15W wireless (Qi2) 4.5W reverse wired |
| Misc | |
| Colors | Black Titanium, White Titanium, Natural Titanium, Desert Titanium |
| Models | A3296, A3084, A3295, A3297, iPhone17,2 |
| Price | From $848.95 |
| Tests | |
| Performance | AnTuTu: 1838828 (v10) GeekBench: 8606 (v6) 3DMark: 4731 (Wild Life Extreme) |
| Display | 1796 nits max brightness (measured) |
| Loudspeaker | -24.4 LUFS (Very good) |
| Battery (new) | Active use score 17:18h |
Performance Benchmarks
Visualizations provide a clearer picture of the device’s capabilities. The charts below compare key performance metrics and show the device’s battery endurance score. Interact with them to see the details.
Test Scores
Battery Life
